Product Miscellaneous Fittings
Category Outlet
Name [EEMUA 146 7060X] Sockolet For Cu-Ni Pipe
Materials EEMUA 146 7060X

제품설명

  • Unit : mm

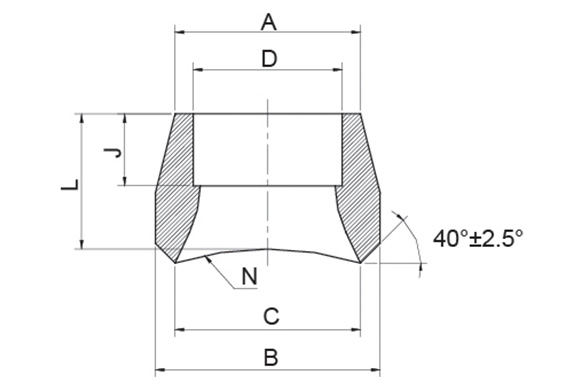

Pipe Main Pipe Dimension Remark
N/D O/D N L D A B C J (Min.)
1/2" 16.0 3/4" to 1 1/2" 25.4 16.1 31.8 35.0 23.8 10
2" to 36" 23.8
3/4" 25.0 1" to 1 1/2" 26.9 25.1 36.5 44.5 30.2 13
2" to 36" 25.4
1" 30.0 1 1/4" to 1 1/2" 33.3 30.1 46.0 54.0 36.5 13
2" to 36" 28.6
1 1/2" 44.5 2" to 36" 30.2 44.6 62.0 73.0 50.8 13
*NOTE : 1. Dimension Per EEMUA 146
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
