| Product | Miscellaneous Fittings |
|---|---|
| Category | Outlet |
| Name | [EEMUA 146 7060X] Threadolet Cu-Ni Pipe |
| Materials | EEMUA 146 7060X |
제품설명
- Unit : mm

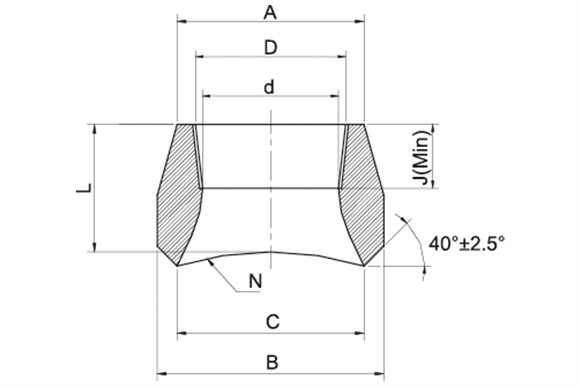

| Nominal Branch Size In (D) |
Main Pi[e | Internal FlangeBolt | Nominal Bore (d) |
Remark | ||||
|---|---|---|---|---|---|---|---|---|
| N | L | A | B | C | J | |||
| NPT 1/2" | 3/4" to 1 1/2" | 25.4 | 31.8 | 35.0 | 23.8 | 13.5 | 11.74 | |
| 2" to 36" | 23.8 | |||||||
| NPT 3/4" | 1" to 1 1/2" | 26.9 | 36.5 | 44.5 | 30.2 | 14.0 | 15.58 | |
| 2" to 36" | 25.4 | |||||||
| NPT 1" | 1 1/4" to 1 1/2" | 33.3 | 46.0 | 54.0 | 36.5 | 17.5 | 20.70 | |
| 2" to 36" | 28.6 | |||||||
| NPT 1 1/2" | 2" to 36" | 30.2 | 62.0 | 73.0 | 50.8 | 18.5 | 34.02 | |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
