| Product | Socket Welding Fittings |
|---|---|
| Category | Elbow |
| Name | [EEMUA 146 7060X] Socket Welding Type Elbow(90D, 45D) For Cu-Ni Pipe |
| Materials | EEMUA 146 7060X |
제품설명

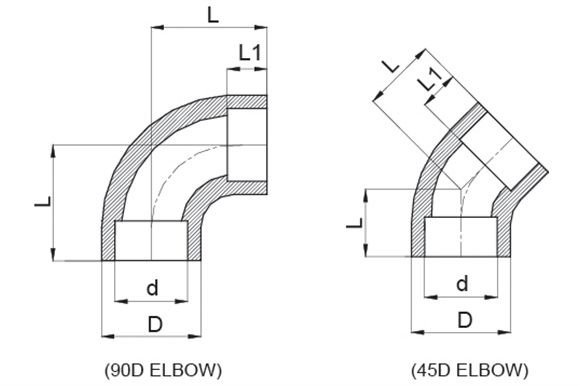

Socket Welding Type Elbow(90D, 45D) For Cu-Ni Pipe
- Unit : mm
| Pipe | Dimension | Remark | |||||
|---|---|---|---|---|---|---|---|
| N/D | O/D | D | d | L | L1 | ||
| 90D | 45D | ||||||
| 1/2" | 16 | 23 | 16.1 | 40.0 | 22.0 | 10 | |
| 3/4" | 25 | 32 | 25.1 | 50.5 | 28.5 | 13 | |
| 1" | 30 | 37 | 30.14 | 58.0 | 31.6 | 13 | |
| 1 1/2" | 44.5 | 52. | 44.6 | 79.8 | 40.6 | 13 | |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
