[EEMUA 146 7060X] Butt Welding Type L/R Elbow(90D & 45D) For Cu-Ni Pipe

페이지 정보

profile_image
작성자 Samyang
댓글 0건 조회 1,055회 작성일 20-08-17 19:53

본문

Product Butt Welding Fittings
Category Elbow
Name [EEMUA 146 7060X] Butt Welding Type L/R Elbow(90D & 45D) For Cu-Ni Pipe
Materials EEMUA 146 7060X

제품설명

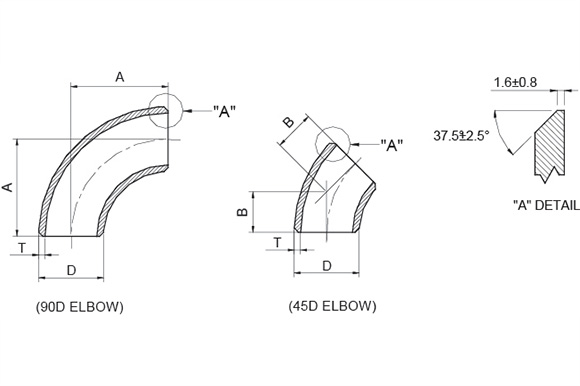

  • Unit : mm
Pipe Dimension Remark
N/D O/D D T A B
16Bar 20Bar
2" 57.0 57.0 2.5 2.5 76.0 35.0 SEAMLESS
2 1/2" 76.1 76.1 2.5 2.5 95.0 44.0 SEAMLESS
3" 88.9 88.9 2.5 2.5 114.0 51.0 SEAMLESS
4 108.0 108.0 3.0 3.0 152.0 64.0 SEAMLESS
6" 159.0 159.0 3.0 3.5 229.0 95.0 SEAMLESS
8" 219.1 219.1 4.0 4.5 305.0 127.0 SEAMLESS
10" 267.0 267.0 4.5 5.5 381.0 159.0 SEAMLESS
12" 323.9 323.9 5.5 7.0 457.0 190.0 SEAMLESS
14" 368.0 368.0 6.5 8.0 533.0 222.0 WELDED
16" 419.0 419.0 7.0 9.0 610.0 254.0 WELDED
18" 457.2 457.2 8.0 9.5 686.0 286.0 WELDED
20" 508.0 508.0 8.5 11.0 762.0 318.0 WELDED
24" 610.0 610.0 10.5 13.0 914.0 381.0 WELDED
28" 711.0 711.0 12.0 15.0 1067.0 438.0 WELDED
*NOTE : 1. Dimension Per EEMUA 146
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
