Product Butt Welding Fittings
Category Elbow
Name [2.1972.22] Butt Welding Type L/R Elbow
Materials 2.1972.22

제품설명

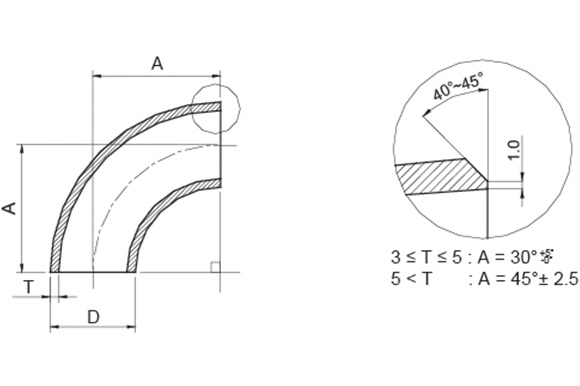

  • Unit : mm
Pipe Dimension Remark
N/D O/D D B T
10Bar 14Bar
DN25 30.0 30.0 33.5 1.5 - SEAMLESS
DN32 38.0 38.0 45.0 1.5 - SEAMLESS
DN40 44.5 44.5 51.0 1.5 - SEAMLESS
DN50 57.0 57.0 72.0 1.5 - SEAMLESS
DN65 76.0 76.0 95.0 2.0 - SEAMLESS
DN80 89.0 89.0 114.5 2.0 2.5 SEAMLESS
DN100 108.0 108.0 142.5 2.5 - SEAMLESS
DN125 133.0 133.0 181.0 2.5 3.0 SEAMLESS
DN150 159.0 159.0 216.0 2.5 3.0 SEAMLESS
DN200 219.0 219.0 305.0 3.0 3.5 SEAMLESS
DN250 267.0 267.0 387.0 3.0 4.0 SEAMLESS
DN300 324.0 324.0 457.0 4.0 5.0 SEAMLESS
DN350 368.0 368.0 533.5 4.0 5.5 WELDED
DN400 419.0 419.0 609.5 4.0 6.0 WELDED
DN450 457.0 457.0 686.0 4.0 6.0 WELDED
DN500 508.0 508.0 762.0 5.0 6.5 WELDED
DN600 610.0 610.0 914.0 5.0 8.0 WELDED
*NOTE : 1. Dimension Per DIN 86090
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
