Product Butt Welding Fittings
Category STR. Tee
Name [ASTM UNS C70600] Butt Welding Type Straight Tee For Cu-Ni Pipe
Materials ASTM UNS C70600

제품설명

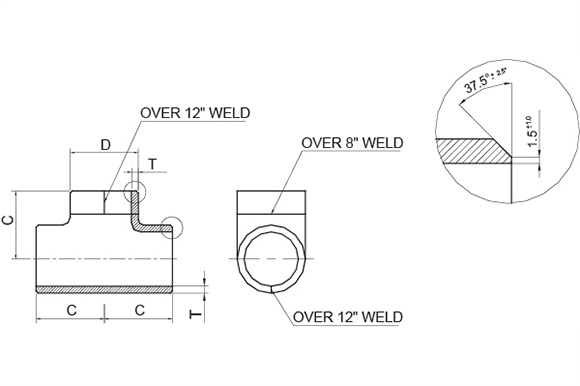

  • Unit : mm
Pipe Dimension Remark
N/D O/D D T C
S/10S S/40S
2" 60.3 60.3 2.77 3.91 64 SEAMLESS
3" 88.9 88.9 3.05 5.49 86 SEAMLESS
4" 114.3 114.3 3.05 6.02 105 SEAMLESS
6" 168.3 168.3 3.40 7.11 143 SEAMLESS
8" 219.1 219.1 3.76 8.18 178 SEAMLESS
10" 273.0 273.0 4.19 9.27 216 SEAMLESS
12" 323.8 323.8 4.57 9.52 254 SEAMLESS
14" 355.6 355.6 4.78 9.52 279 SEAMLESS
16" 406.4 406.4 4.78 9.52 305 SEAMLESS
18" 457.0 457.0 63.5 9.52 343 SEAMLESS
20" 508.0 508.0 6.35 9.52 381 SEAMLESS
24" 610.0 610.0 6.35 9.52 432 SEAMLESS
*NOTE : 1. Dimension Per ASME B16.9
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
