[EEMUA 146 7060X] Butt Welding Type Reducing Tee For Cu-Ni Pipe

페이지 정보

profile_image
작성자 Samyang
댓글 0건 조회 995회 작성일 20-08-17 19:35

본문

Product Butt Welding Fittings
Category RED. Tee
Name [EEMUA 146 7060X] Butt Welding Type Reducing Tee For Cu-Ni Pipe
Materials EEMUA 146 7060X

제품설명

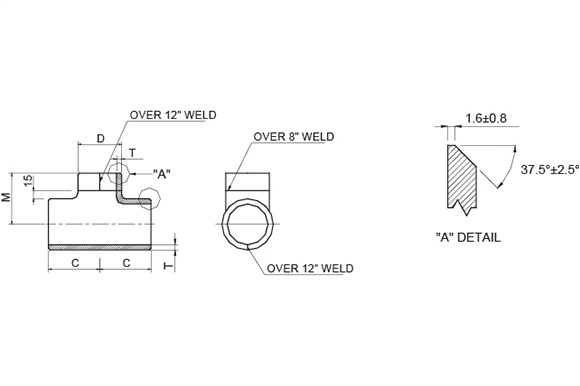

  • Unit : mm
Pipe Dimension Remark
N/D D d T t C M
16Bar 20Bar 16Bar 20Bar
2"X1" 57.0 30.0 2.5 2.5 2.5 2.5 64 51 SEAMLESS
2"X1 1/4" 57.0 38.0 2.5 2.5 2.5 2.5 64 57 SEAMLESS
2"X1 1/2" 57.0 44.5 2.5 2.5 2.5 2.5 64 60 SEAMLESS
2 1/2"X1 1/4" 76.1 38.0 2.5 2.5 2.5 2.5 76 64 SEAMLESS
2 1/2"X1 1/2" 76.1 44.5 2.5 2.5 2.5 2.5 76 67 SEAMLESS
2 1/2"X2" 76.1 57.0 2.5 2.5 2.5 2.5 76 70 SEAMLESS
3"X1 1/2" 88.9 44.5 2.5 2.5 2.5 2.5 86 73 SEAMLESS
3"X2" 88.9 57.0 2.5 2.5 2.5 2.5 86 76 SEAMLESS
3"X2 1/2" 88.9 76.1 2.5 2.5 2.5 2.5 86 83 SEAMLESS
4"X2" 108.0 57.0 3.0 3.0 2.5 2.5 105 89 SEAMLESS
4"X2 1/2" 108.0 76.1 3.0 3.0 2.5 2.5 105 95 SEAMLESS
4"X3" 108.0 88.9 3.0 3.0 2.5 2.5 105 98 SEAMLESS
6"X2 1/2" 159.0 76.1 3.0 3.5 2.5 2.5 143 121 SEAMLESS
6"X3" 159.0 88.9 3.0 3.5 2.5 2.5 143 124 SEAMLESS
6"X4" 159.0 108.0 3.0 3.5 3.0 3.0 143 130 SEAMLESS
8"X4" 219.1 108.0 4.0 4.5 3.0 3.0 178 156 SEAMLESS
8"X6" 219.1 159.0 4.0 4.5 3.0 3.5 178 168 SEAMLESS
10"X6" 267.0 159.0 4.5 5.5 3.0 3.5 216 194 WELDED
10"X8" 267.0 219.1 4.5 5.5 4.0 4.5 216 203 WELDED
12"X6" 323.9 159.0 5.5 7.0 3.0 3.5 254 219 WELDED
12"X8" 323.9 219.1 5.5 7.0 4.0 4.5 254 229 WELDED
12"X10" 323.9 267.0 5.5 7.0 4.5 5.5 254 241 WELDED
14"X8" 368.0 219.1 6.5 8.0 4.0 4.5 297 248 WELDED
14"X10" 368.0 267.0 6.5 8.0 4.5 5.5 297 257 WELDED
14"X12" 368.0 323.9 6.5 8.0 5.5 7.0 297 270 WELDED
*NOTE : 1. Dimension Per EEMUA 146
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
