[2.1972.22] Butt Welding Type Cap For Cu-Ni Pipe

페이지 정보

profile_image
작성자 Samyang
댓글 0건 조회 946회 작성일 20-08-17 18:04

본문

Product Butt Welding Fittings
Category Cap
Name [2.1972.22] Butt Welding Type Cap For Cu-Ni Pipe
Materials 2.1972.22

제품설명

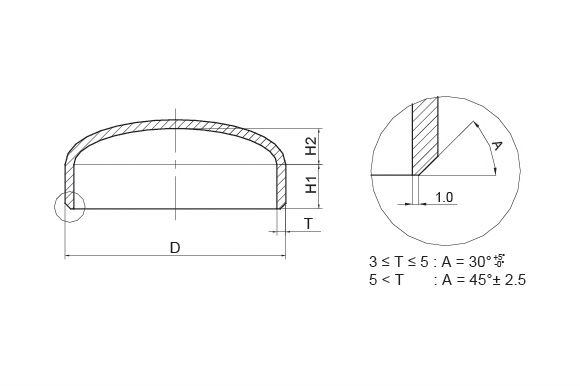

  • Unit : mm
Pipe Dimension Remark
N/D O/D D T H1 H2
10Bar 14Bar 10Bar 14Bar
DN25 30.0 30.0 1.5 - 14.0 14.0 5.0
DN32 38.0 38.0 1.5 - 14.0 14.0 6.5
DN40 44.5 44.5 1.5 - 14.0 14.0 8.0
DN50 57.0 57.0 1.5 - 18.0 18.0 10.0
DN65 76.0 76.0 2.0 - 18.0 18.0 14.0
DN80 89.0 89.0 2.0 2.5 20.0 20.0 16.0
DN100 108.0 108.0 2.5 - 20.0 20.0 20.0
DN125 133.0 133.0 2.5 3.0 20.0 20.0 24.0
DN150 159.0 159.0 2.5 3.0 20.0 20.0 29.0
DN200 219.0 219.0 3.0 3.5 20.0 20.0 41.0
DN250 267.0 267.0 3.0 4.0 20.0 20.0 50.0
DN300 324.0 324.0 4.0 5.0 20.0 20.0 61.0
DN350 368.0 368.0 4.0 5.5 20.0 20.0 69.0
DN400 419.0 419.0 4.0 6.0 20.0 25.0 79.0
DN450 457.0 457.0 4.0 6.0 20.0 25.0 87.0
DN500 508.0 508.0 4.5 6.5 20.0 25.0 96.0
DN600 610.0 610.0 5.0 8.0 20.0 25.0 115.0
*NOTE : 1. Dimension Per DIN 28011
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
