[2.1972.22] Butt Welding Type Saddle For Cu-Ni Pipe

페이지 정보

profile_image
작성자 Samyang
댓글 0건 조회 846회 작성일 20-08-17 17:56

본문

Product Butt Welding Fittings
Category Saddle
Name [2.1972.22] Butt Welding Type Saddle For Cu-Ni Pipe
Materials 2.1972.22

제품설명

  • Unit : mm

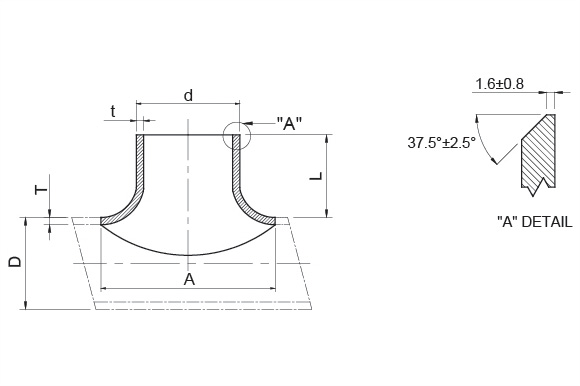

Pipe Dimension Remark
N/D D d A L T t
16Bar 20Bar 16Bar 20Bar
DN32XDN32 38.0 38.0 64.0 35.0 2.5 2.5 2.5 2.5
DN40XDN32 44.5 38.0 64.0 35.0 2.5 2.5 2.5 2.5
DN40XDN40 44.5 44.5 74.0 35.0 2.5 2.5 2.5 2.5
DN50XDN32 57.0 38.0 64.0 35.0 2.5 2.5 2.5 2.5
DN50XDN40 57.0 44.5 74.0 35.0 2.5 2.5 2.5 2.5
DN50XDN50 57.0 57.0 97.0 40.0 2.5 2.5 2.5 2.5
DN65XDN32 76.0 38.0 64.0 35.0 2.5 2.5 2.5 2.5
DN65XDN40 76.0 44.5 74.0 35.0 2.5 2.5 2.5 2.5
DN65XDN50 76.0 57.0 97.0 40.0 2.5 2.5 2.5 2.5
DN65XDN65 76.0 76.0 126.0 50.0 2.5 2.5 2.5 2.5
DN80XDN40 89.0 44.5 74.0 35.0 2.5 2.5 2.5 2.5
DN80XDN50 89.0 57.0 97.0 40.0 2.5 2.5 2.5 2.5
DN80XDN65 89.0 76.0 126.0 50.0 2.5 2.5 2.5 2.5
DN80XDN80 89.0 89.0 149.0 55.0 2.5 2.5 2.5 2.5
DN100XDN50 108.0 57.0 97.0 40.0 3.0 3.0 2.5 2.5
DN100XDN65 108.0 76.0 126.0 50.0 3.0 3.0 2.5 2.5
DN100XDN80 108.0 89.0 149.0 55.0 3.0 3.0 2.5 2.5
DN100XDN100 108.0 108.0 188.0 75.0 3.0 3.0 3.0 3.0
DN150XDN80 159.0 89.0 149.0 55.0 3.0 3.5 2.5 2.5
DN150XDN100 159.0 108.0 188.0 75.0 3.0 3.5 3.0 3.0
DN150XDN150 159.0 159.0 279.0 95.0 3.0 3.5 3.0 3.5
DN200XDN100 219.0 108.0 188.0 75.0 4.0 4.5 3.0 3.0
DN200XDN150 219.0 159.0 279.0 95.0 4.0 4.5 3.0 3.5
DN200XDN200 219.0 219.0 397.0 125.0 4.0 4.5 4.0 4.5
DN250XDN150 267.0 159.0 279.0 95.0 4.5 5.5 3.0 3.5
DN250XDN200 267.0 219.0 397.0 125.0 4.5 5.5 4.0 4.5
DN250XDN250 267.0 267.0 447.0 155.0 4.5 5.5 4.5 5.5
*NOTE : 1. Dimension Per EEMUA 146
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
