[EEMUA 146 7060X] Socket Welding Type Straight Tee For Cu-Ni Pipe

페이지 정보

profile_image
작성자 Samyang
댓글 0건 조회 635회 작성일 20-08-29 23:18

본문

Product Socket Welding Fittings
Category STR. Tee
Name [EEMUA 146 7060X] Socket Welding Type Straight Tee For Cu-Ni Pipe
Materials EEMUA 146 7060X

Product Information

  • Unit : mm

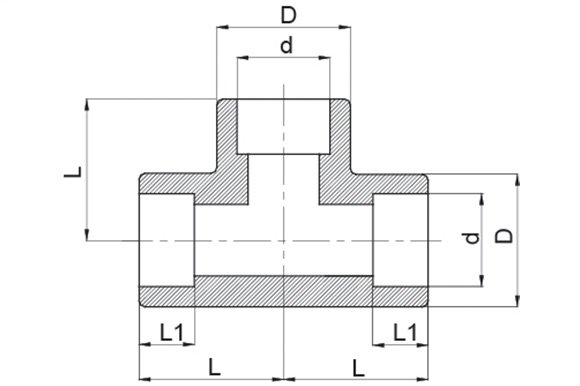

Pipe Dimension Remark
N/D O/D D d L L1
1/2" 16 23.0 16.1 21.0 10.0
3/4" 25 32.0 25.1 26.0 13.0
1" 30 37.0 30.1 28.5 13.0
1 1/2" 44.5 52.0 44.6 41.0 13.0
*NOTE : 1. Dimension Per EEMUA 146
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
