Product Butt Welding Fittings
Category Elbow
Name [ASTM UNS C70600] Butt Welding Type L/R Elbow(90D & 45D) For Cu-Ni Pipe
Materials ASTM UNS C70600

Product Information

  • Unit : mm

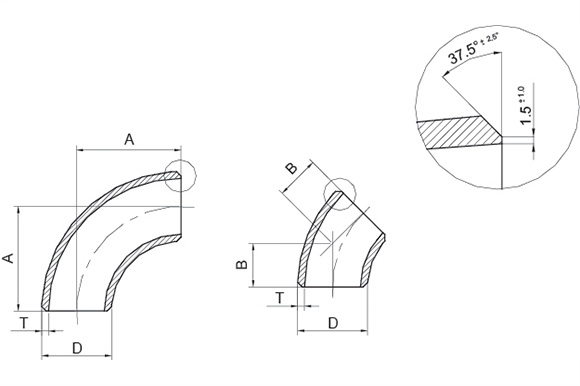

Pipe Dimension Remark
N/D O/D D A B T
S/10S S/40S
2" 60.3 60.3 76.0 35.0 2.77 3.91 SEAMLESS
3" 88.9 88.9 114.0 51.0 3.05 5.49 SEAMLESS
4" 114.3 114.3 152.0 64.0 3.05 6.02 SEAMLESS
6" 168.3 168.3 229.0 95.0 3.40 7.11 SEAMLESS
8" 219.1 219.1 305.0 127.0 3.76 8.18 SEAMLESS
10" 273.0 273.0 381.0 159.0 4.19 9.27 SEAMLESS
12" 323.8 323.8 457.0 190.0 4.57 9.52 SEAMLESS
14" 355.6 355.6 533.0 222.0 4.78 9.52 WELDED
16" 406.4 406.4 610.0 254.0 4.78 9.52 WELDED
18" 457.0 457.0 686.0 286.0 63.5 9.52 WELDED
20" 508.0 508.0 762.0 318.0 6.35 9.52 WELDED
24" 610.0 610.0 914.0 381.0 6.35 9.52 WELDED
28" 711.0 711.0 1067.0 438.0 7.92 9.52 WELDED
*NOTE : 1. Dimension Per ASME B16.9
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
